Hydraulic & Pneumatic Seals
Fluid Power Sealing Solutions: Engineered for Precision and Durability
We supply a comprehensive range of high-performance hydraulic and pneumatic seals designed to maintain absolute system integrity.
Whether you are dealing with high-pressure fluid power systems or precision pneumatic cylinders, choosing the right sealing profile is critical to preventing leakage and extending equipment lifespan.
Below is an overview of our core sealing profiles and their specific applications within a cylinder system.
Rod Seals
The rod seal is arguably the most critical component in any fluid power system.
Installation & Function: Installed on the inner cylinder head, it acts as the primary dynamic barrier, preventing fluid from leaking outward from the cylinder into the environment.
Application: Essential for maintaining system pressure and preventing environmental contamination in heavy-duty hydraulic cylinders, excavators, and industrial presses.
Backup Rings Cluster
The ultimate extrusion-resistance device for extreme pressures.
Installation & Function: While backup rings do not possess independent sealing functionality, they are indispensable when used in conjunction with primary O-rings. They physically block the clearance gap, preventing the softer main elastomer seal from extruding and tearing under high-pressure spikes.
Application: Standard practice in high-pressure hydraulic systems, valves, and pumps where operating pressures exceed the extrusion limits of standard elastomers.
Wiper/Dust Seals Cluster
Your system’s first line of external defense.
Installation & Function: Positioned on the external side of the hydraulic cylinder, wiper seals actively scrape away dust, moisture, and abrasive debris during the rod’s retraction stroke.
Application: Crucial for construction machinery, agricultural equipment, and any application operating in harsh, heavily contaminated environments to protect internal components from premature wear.
Wear Rings/Guide Bands Cluster
Designed for mechanical support rather than fluid sealing.
Installation & Function: Engineered to absorb intense radial forces acting on the piston or rod. They guide the alignment of moving parts, effectively preventing catastrophic direct metal-to-metal friction within the cylinder body.
Application: Used in long-stroke cylinders or systems subjected to heavy side-loading, ensuring smooth operation and protecting the expensive metal surfaces of the cylinder.
Piston Seals
Piston seals are designed to ensure complete internal fluid containment.
Installation & Function: Installed directly on the piston, this seal prevents pressurized fluid from bypassing the piston across the cylinder chambers. This complete barrier is what guarantees optimal pressure build-up and efficient power transmission.
Application: Widely used in both single-acting and double-acting hydraulic and pneumatic cylinders where maximum force output is required.
| Profile Category | Primary Material Options | Max Operating Pressure (MPa) | Temperature Range (°C) | Max Surface Speed (m/s) |
|---|---|---|---|---|
| Rod Seals | PU / PTFE | Up to 40 - 60 | -35 to +110 | 0.5 - 15.0 |
| Piston Seals | Bronze-filled PTFE / NBR | Up to 40 - 60 | -30 to +200 | 1.5 - 15.0 |
| Wiper / Dust Seals | PU / NBR / PTFE | Atmospheric | -35 to +110 | 1.0 - 4.0 |
| Wear Rings | POM / Phenolic Resin / PTFE | > 100 N/mm² (Radial Load) | -40 to +120 | Up to 1.0 - 5.0 |
| Backup Rings | Virgin PTFE / Hard NBR | Dependent on primary seal | -60 to +200 | Static or slow dynamic |
Heavy Construction & Mining
High-pressure hydraulic seals engineered to withstand extreme shock loads, pressure spikes, and abrasive environments in heavy-duty earthmoving equipment.
Industrial Automation
Precision pneumatic sealing solutions designed for low-friction and high-speed repetitive operations in modern manufacturing assembly lines.
Agricultural Machinery
Robust fluid power profiles built to resist UV, harsh weathering, and constant exposure to abrasive particles in open-field environments.
Fluid & Pressure Control
Custom molded seals and heavy-duty O-rings formulated for reliable dynamic fluid control and leak prevention in critical valve systems.

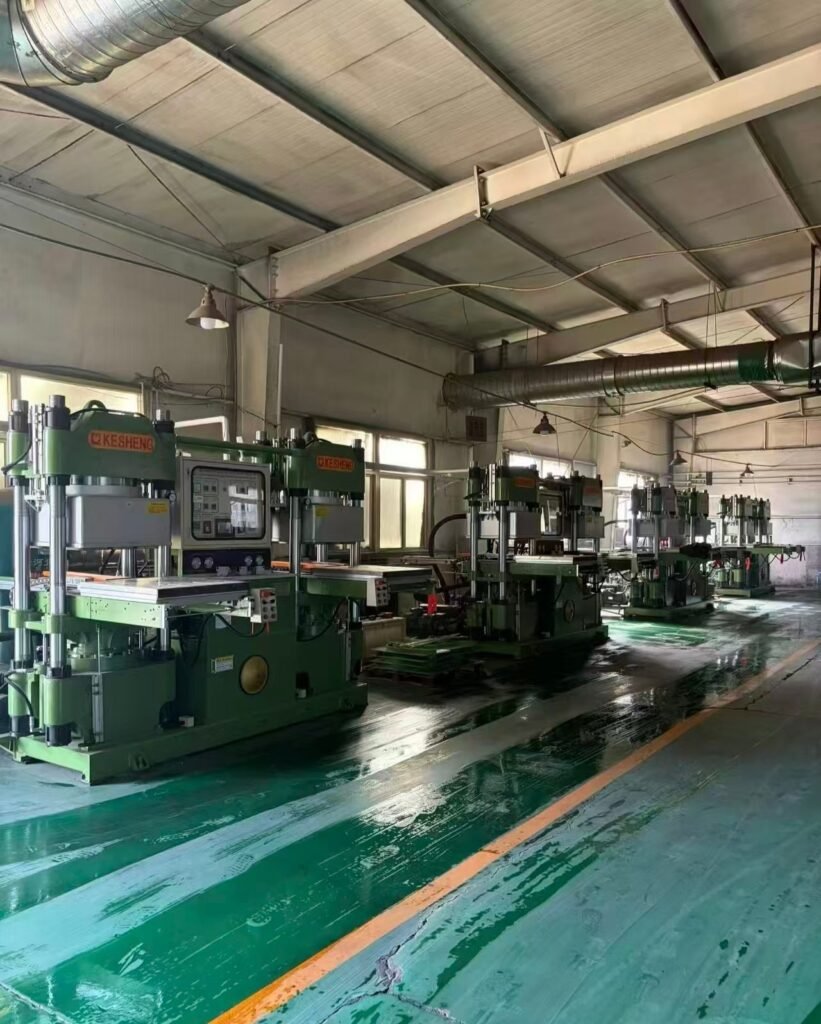

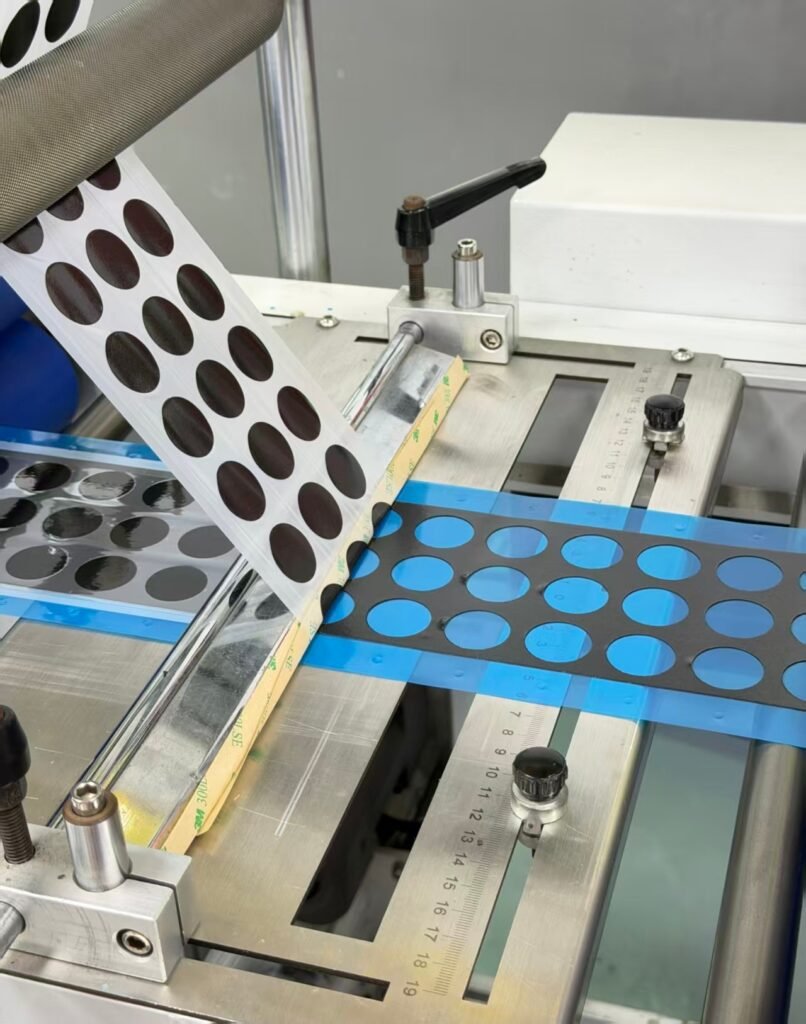

Need a Custom Sealing Solution?
“Whether you need standard profiles or non-standard dimensions, our dedicated senior designer ensures rapid drawing output and precise prototyping. We provide seamless support from initial concept to full-scale production.”
📐 Direct Expert Review Skip the bureaucratic red tape. You will work directly with our dedicated senior designer to review your CAD drawings or reverse-engineer your physical samples, ensuring rapid and accurate technical communication.
🧪 Material Optimization We don’t just copy dimensions; we optimize for performance. We help you select the exact elastomer or polymer (such as specialized FKM, NBR, or PTFE) to withstand your specific chemical fluids and thermal environments.
⚡ Rapid CNC Prototyping Keep your downtime to an absolute minimum. Utilizing advanced CNC turning technology, we can manufacture high-precision custom prototypes quickly, without the need for expensive upfront mold tooling fees.
