PEEK Extreme-Pressure Wear Components: Engineered for Extreme Loads and Harsh Environments
Yedra manufactures advanced Polyetheretherketone (PEEK) guiding and wear elements designed to provide unparalleled anti-extrusion and extreme load-bearing performance in the most demanding fluid power environments.
Whether your application involves ultra-high system pressures, extreme temperature fluctuations, or highly corrosive chemical conditions, choosing the correct PEEK profile is essential for preventing seal extrusion failure, eliminating metal-to-metal contact, and ensuring precise, continuous heavy-duty dynamic support.
Below is an overview of our core PEEK extreme-pressure wear component profiles, engineered with specialized polymer composite formulations (such as carbon fiber or glass fiber reinforcement) to deliver superior mechanical strength and creep resistance across critical industrial systems.
Classification by Material Formulation (Tribological Grades)
The extreme-pressure performance of PEEK (Polyetheretherketone) is heavily dictated by its specific polymer matrix and composite fillers.
Virgin PEEK (Unfilled): Offers the highest toughness and elongation of all PEEK grades. It provides baseline extreme-temperature resistance (up to +260°C continuous) and absolute chemical inertness. Often FDA-compliant, it is utilized in highly sanitary or ultra-pure environments where particulate shedding from fillers is unacceptable.
Carbon Fiber-Reinforced PEEK (Typically 30% CF): The premier choice for extreme high-pressure environments. Carbon fibers dramatically increase the material’s compressive strength and load-carrying capacity while significantly reducing its coefficient of thermal expansion. It offers extreme extrusion resistance in HPHT (High-Pressure High-Temperature) applications.
Glass Fiber-Reinforced PEEK (Typically 30% GF): Provides exceptional structural rigidity and creep resistance under sustained heavy static loads. Unlike carbon-filled variants, glass-filled PEEK acts as a thermal and electrical insulator, making it ideal for specialized electromechanical fluid systems.
Bearing Grade PEEK (PTFE, Graphite, and Carbon Blend): Engineered specifically for severe dynamic wear applications. The carbon provides structural reinforcement, while the PTFE and graphite act as internal solid lubricants. This grade features the lowest coefficient of friction and highest machinability, perfect for dry-running or marginal-lubrication systems operating under massive loads.
Classification by Functional Component Profile
Within fluid power and pressure control systems, PEEK is machined into specific geometries to handle loads that would instantly destroy standard elastomers, PTFE, or Phenolic compounds.

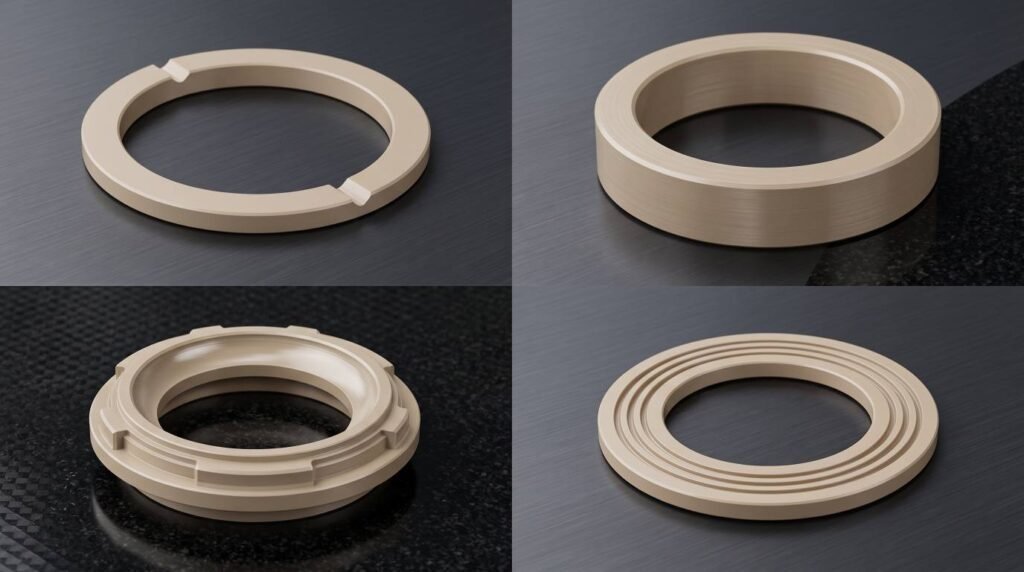

Anti-Extrusion Back-Up Rings: Installed adjacent to elastomeric seals (like O-rings) in static and dynamic applications. PEEK back-up rings prevent the softer seal material from extruding into hardware clearance gaps under extreme pressure spikes (often exceeding 15,000 to 20,000 psi).
Extreme-Load Guide Rings (Wear Bands): Used as rigid bearings on pistons and rods. They absorb massive transverse forces and side-loads in heavy machinery where operating temperatures exceed the thermal degradation limits of Phenolic fabric or bronze-filled PTFE (above +150°C).

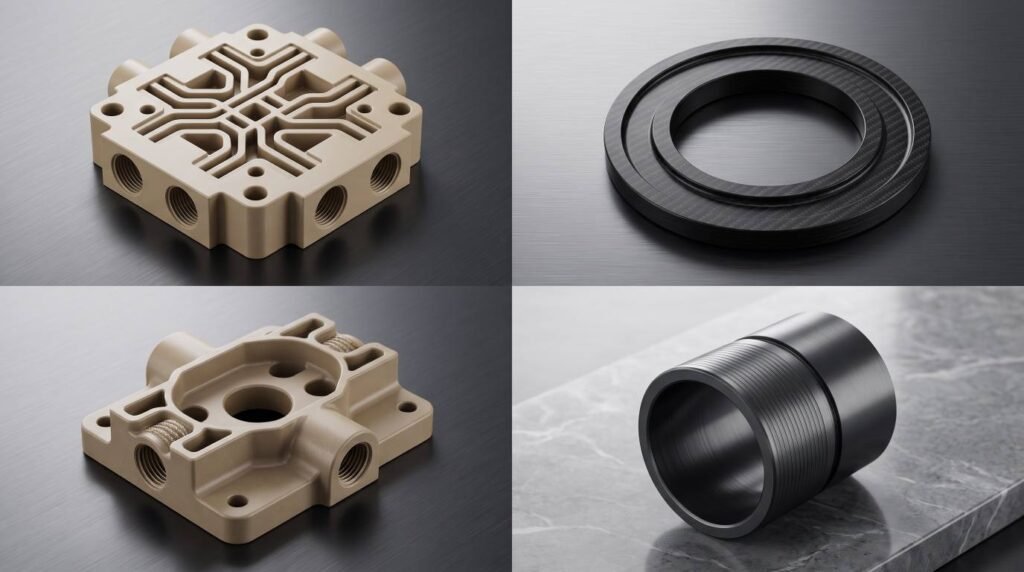

High-Pressure Valve Seats: Precision-machined components used in ball valves and choke valves. PEEK provides a rigid, bubble-tight seal against high-velocity, abrasive fluid media without succumbing to cold flow or pressure deformation.
Thrust Washers and Plain Bearings: Utilized in high-torque rotary applications to absorb axial loads and prevent metal-on-metal galling in high-temperature drive mechanisms.
Classification by Manufacturing Process
CNC Machined Components: Turned or milled directly from extruded PEEK rods or tubes. This method guarantees ultra-tight dimensional tolerances (down to ±0.01mm) and flawless surface finishes required for aerospace, subsea, and custom OEM fluid power applications.
Injection Molded Components: Manufactured in high volumes using precision molds. Best suited for standardized, high-demand wear components where economies of scale are required without sacrificing the polymer’s inherent extreme-pressure characteristics.
Yedra PEEK Extreme-Pressure Wear Components
| Tribological Grade Formulation | Rigorous Mechanical & Thermal Specifications | Primary Application & Engineering Advantage |
|---|---|---|
| Virgin PEEK (Unfilled) 100% Pure Polyetheretherketone | Compressive Strength~120 MPa Tensile Strength~110 MPa Max Continuous Temp+260°C Dynamic Friction (μ)0.30 - 0.40 |
FDA & Sanitary Compliant Highest toughness and elongation. Utilized in high-purity fluid processing, medical devices, and food-grade pneumatic systems where particulate shedding from composite fillers is strictly prohibited. |
| Carbon-Filled PEEK 30% Carbon Fiber Reinforced | Compressive Strength~250 MPa Tensile Strength~200 MPa Max Continuous Temp+260°C+ Thermal ExpansionUltra-Low |
HPHT Environments The premier choice for extreme high-pressure environments. Delivers exceptional anti-extrusion performance for back-up rings and valve seats in subsea and aerospace hydraulics. |
| Glass-Filled PEEK 30% Glass Fiber Reinforced | Compressive Strength~170 MPa Tensile Strength~160 MPa Dielectric StrengthExcellent Creep ResistanceSuperior |
Structural Insulator Provides extreme structural rigidity under sustained heavy static loads. Acts as a thermal and electrical insulator, making it ideal for specialized electromechanical fluid control systems. |
| Bearing Grade PEEK PTFE, Graphite & CF Matrix Blend | Compressive Strength~150 MPa Wear RateExtremely Low Max Continuous Temp+250°C Dynamic Friction (μ)0.08 - 0.12 |
Dry-Running Capable Engineered specifically for severe dynamic wear. Internal solid lubricants (PTFE/Graphite) eliminate the stick-slip phenomenon, perfect for high-speed rotary seals and thrust washers operating under massive loads. |
