Spring-Energized PTFE Seals
Spring-Energized PTFE Seals: Technical Introduction

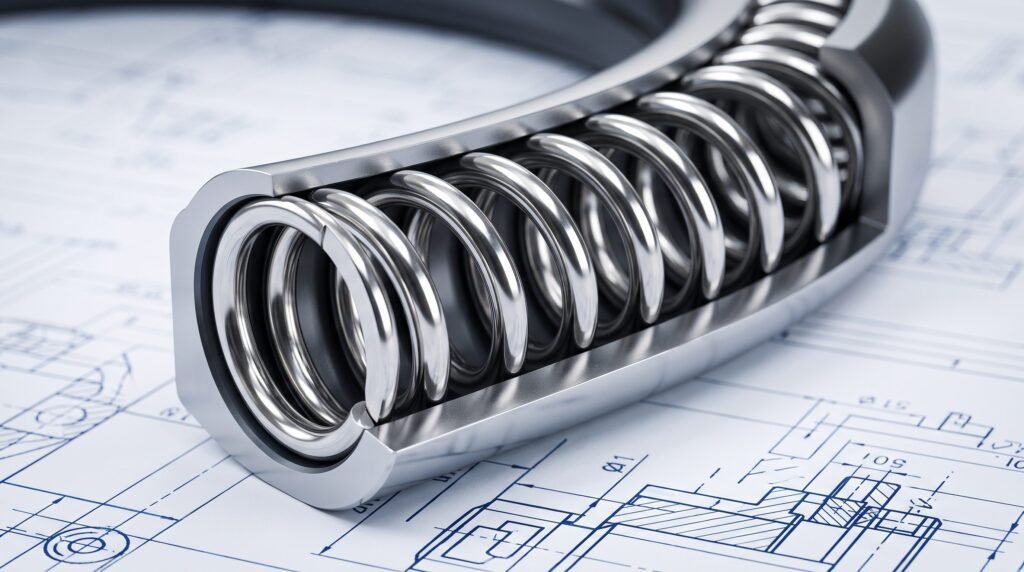

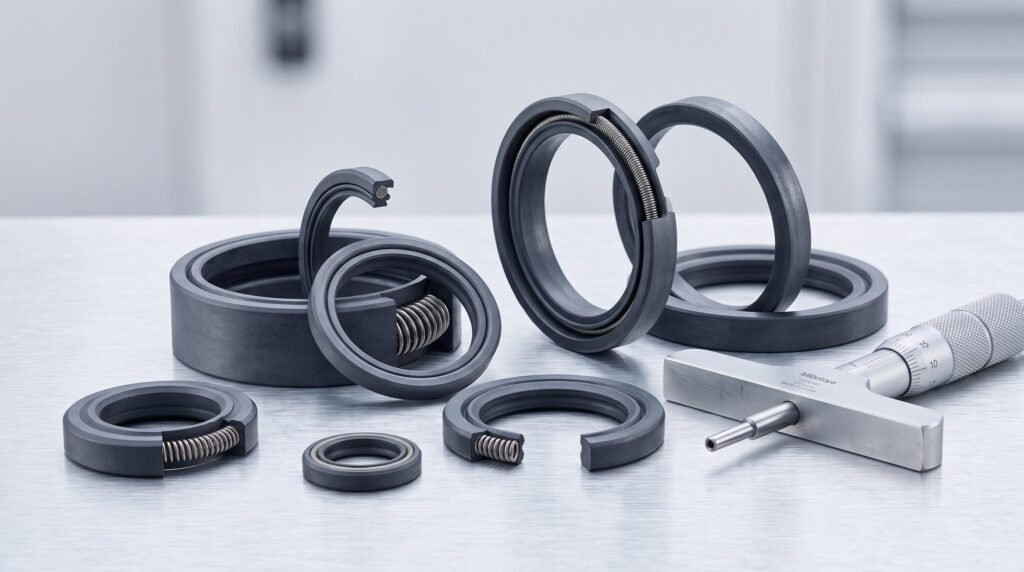

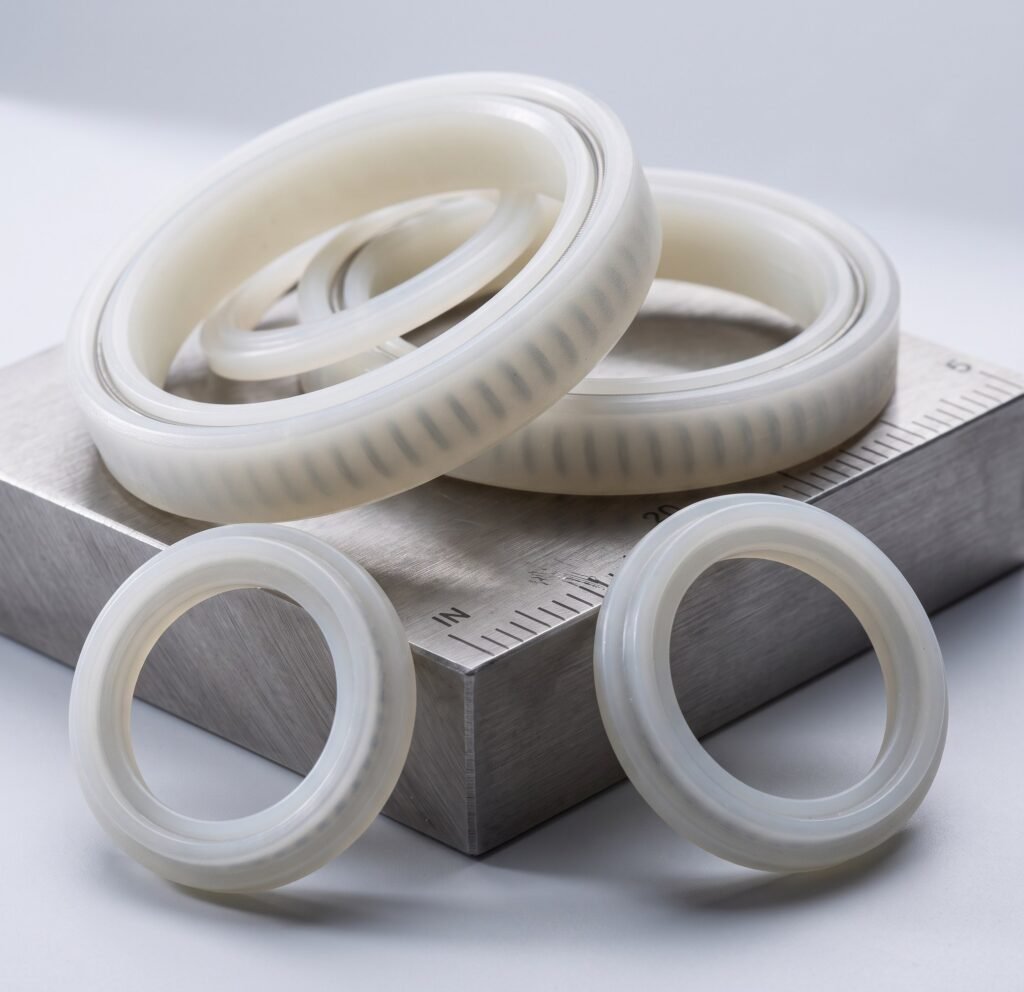

Spring-energized PTFE seals are high-performance sealing devices designed for extreme operational environments where traditional elastomeric seals fail. They consist of a precision-machined polymer jacket (typically PTFE or UHMWPE) and an internal corrosion-resistant metallic spring energizer.
At low or zero system pressure, the internal spring provides a constant initial compressive load, forcing the polymer sealing lips against the hardware surface to maintain a leak-free barrier. As fluid pressure increases, the system hydrodynamically energizes the jacket, proportionately increasing the sealing force. This dual-action design delivers exceptional chemical resistance, extreme temperatur
Classification by Energizer (Spring) Profile
The core mechanical behavior of the seal is dictated by the type of metallic spring used inside the jacket.

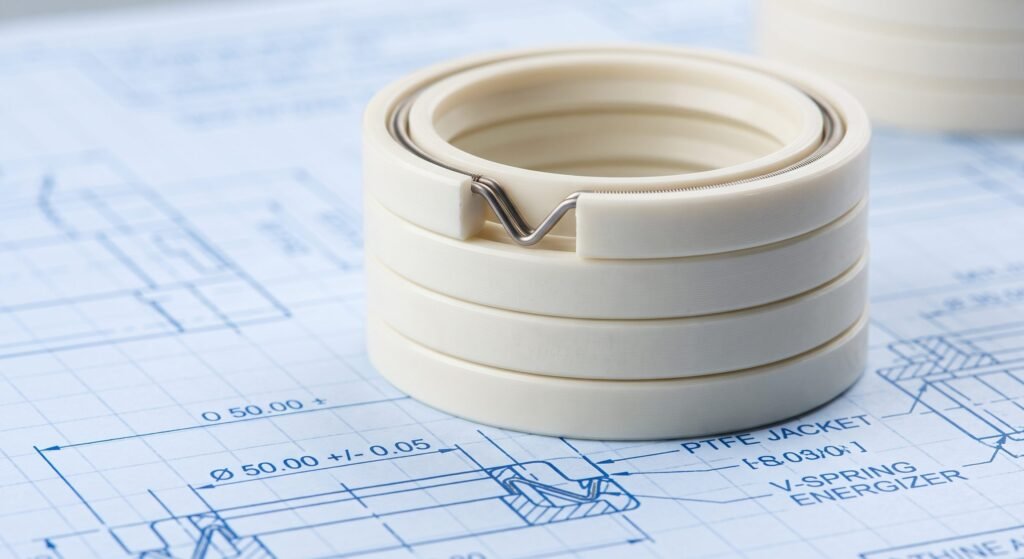

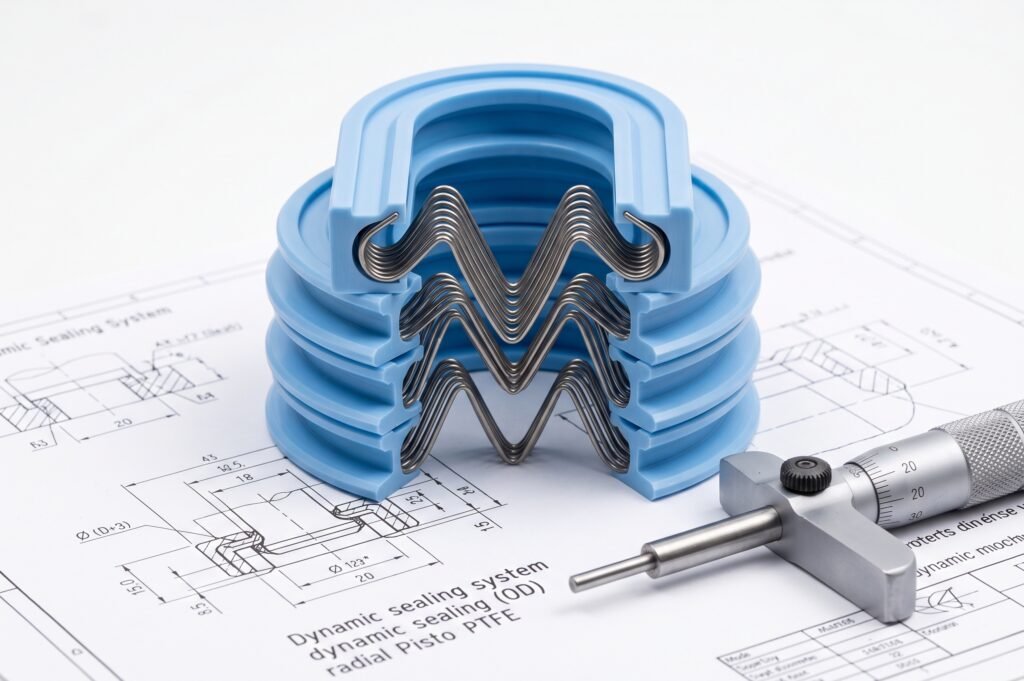

○ V-Spring / Cantilever Spring (As shown in image_4798a4.png ): Features a distinct “V” or “U” shaped cross-section. It provides a moderate-to-high radial load with excellent deflection tolerance. The V-shape concentrates the load on the front edge of the sealing lip, creating a wiping action that is ideal for abrasive media, mud, or viscous fluids. Primarily used in reciprocating and moderate rotary dynamic applications.

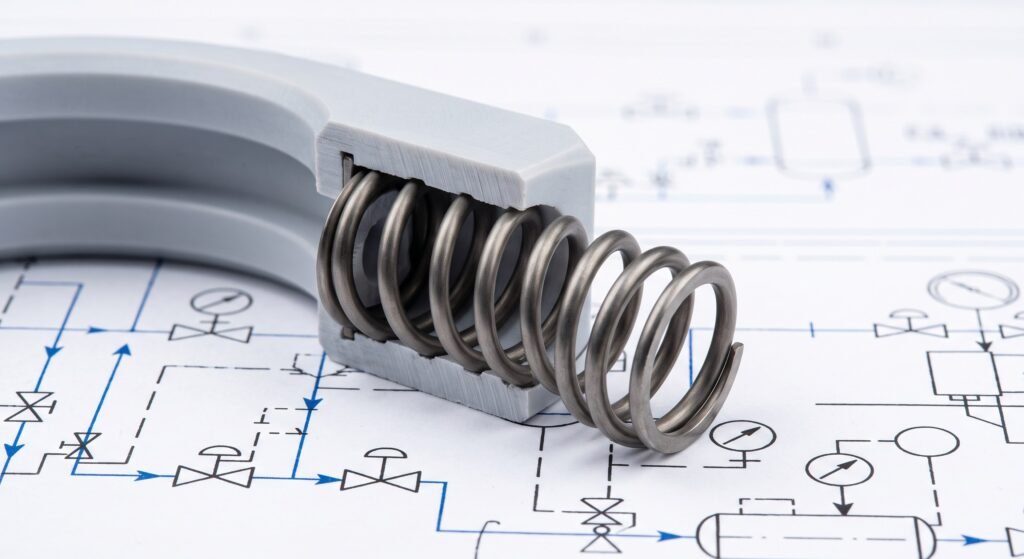

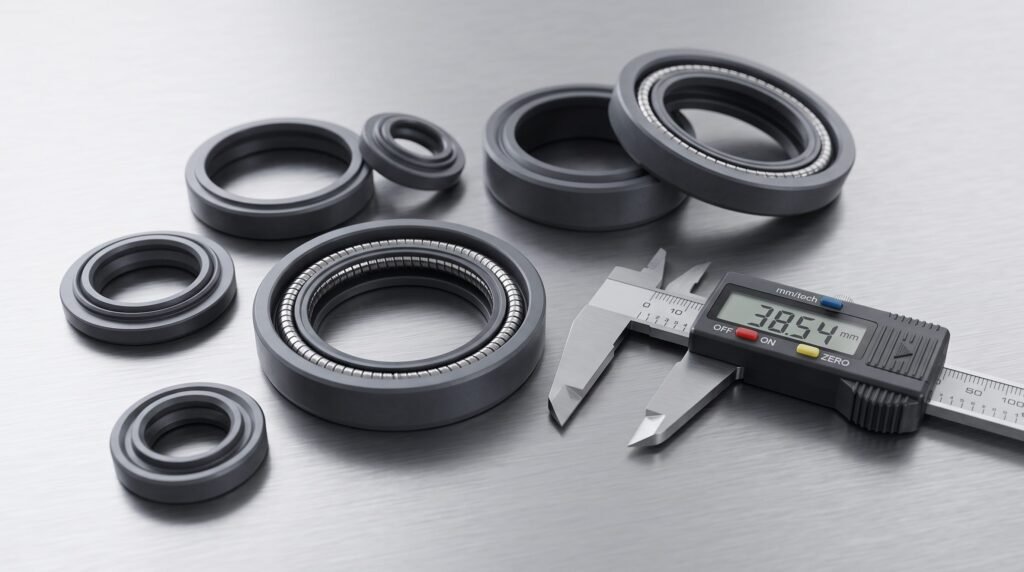

○ Helical Ribbon Spring: Constructed from a heavy-duty coiled metal ribbon. This design generates a very high sealing load over a extremely short deflection range. Because it is highly rigid, it is best suited for static face sealing, cryogenic environments, vacuum systems, or very slow, infrequent dynamic movements where tight emission control is mandatory.

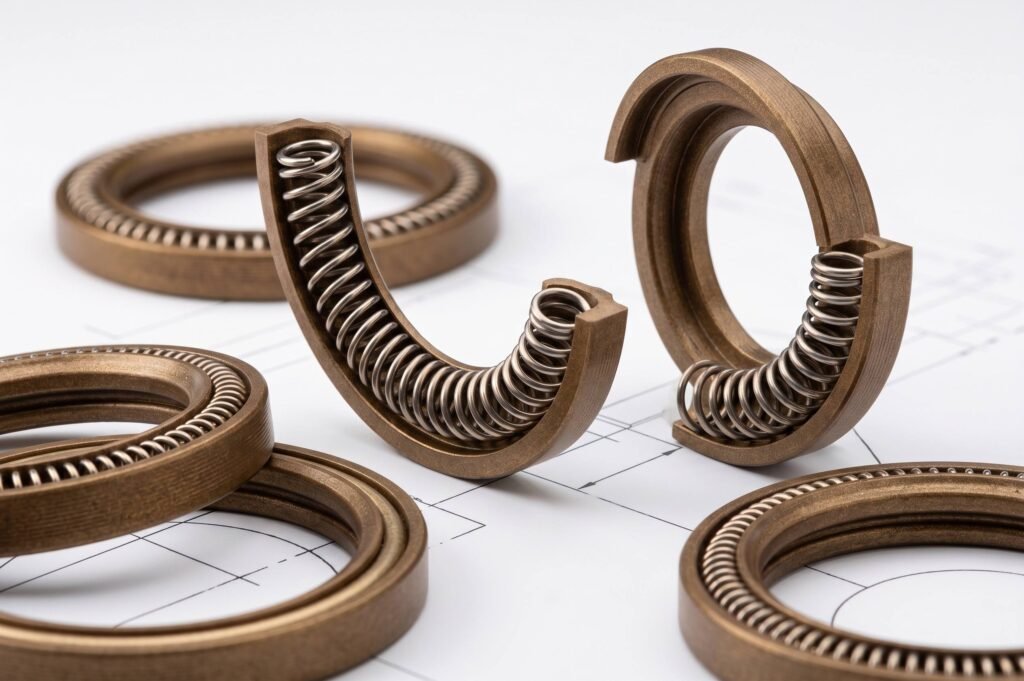

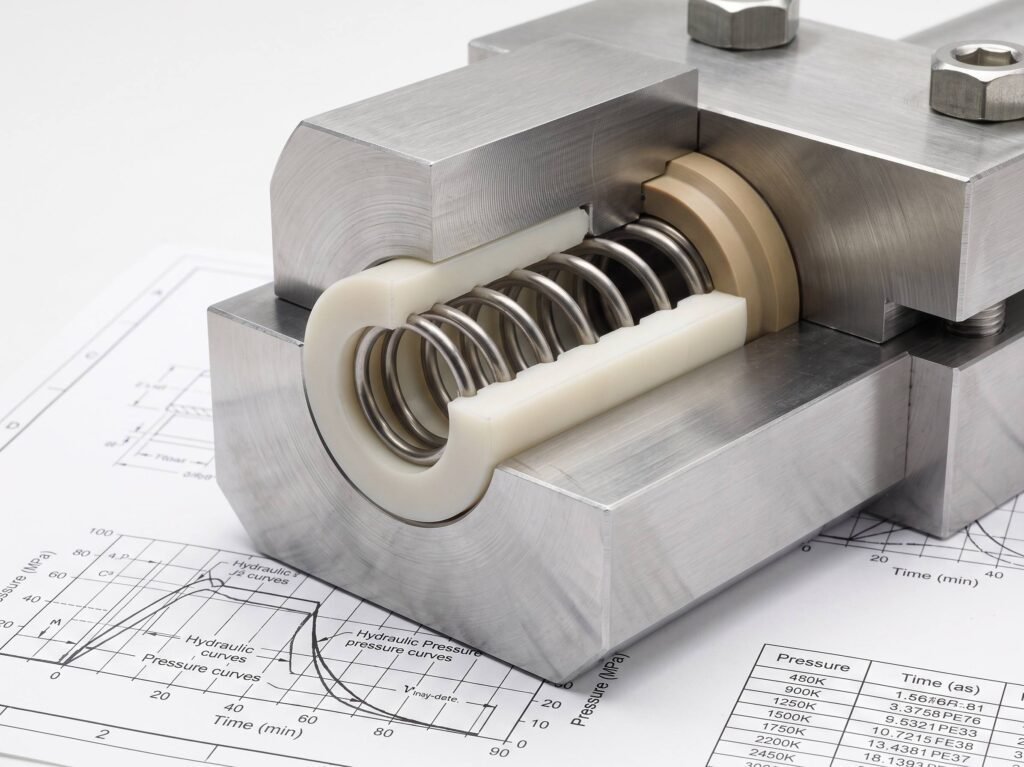

○ Slanted Coil (Canted Coil) Spring: Features a unique tilted wire design that delivers a nearly constant load over a wide range of compression. This provides exceptionally low, predictable friction and compensates for hardware misalignment or thermal expansion. Perfect for high-speed rotary applications, battery-operated equipment, and friction-sensitive instruments.
Classification by Kinematic Application
Engineers categorize these seals based on the hardware motion and orientation.
○ Radial Piston Seals: Engineered to seal on the outer diameter (OD). The sealing lip is oriented outward against the cylinder bore for dynamic reciprocating applications.

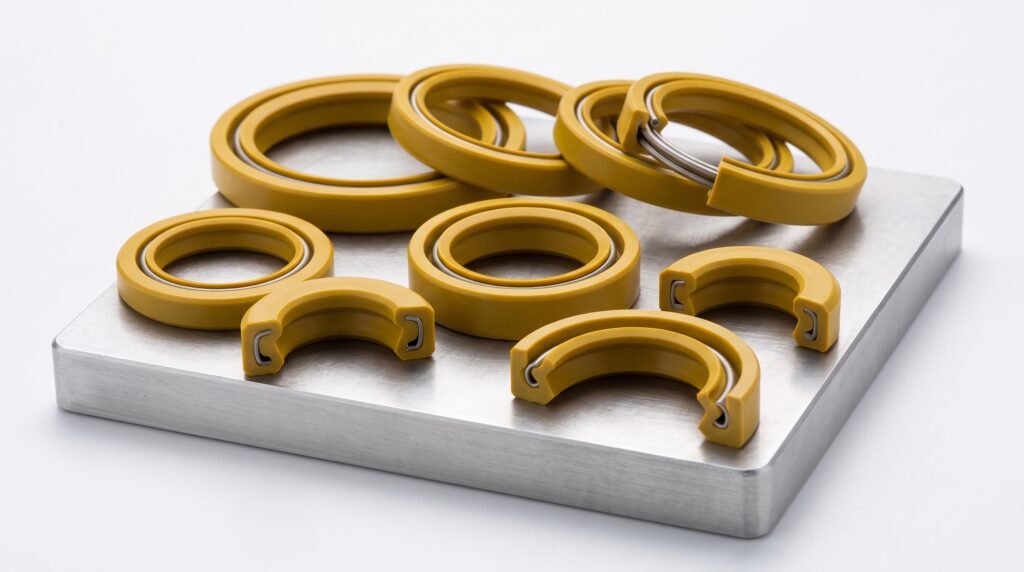

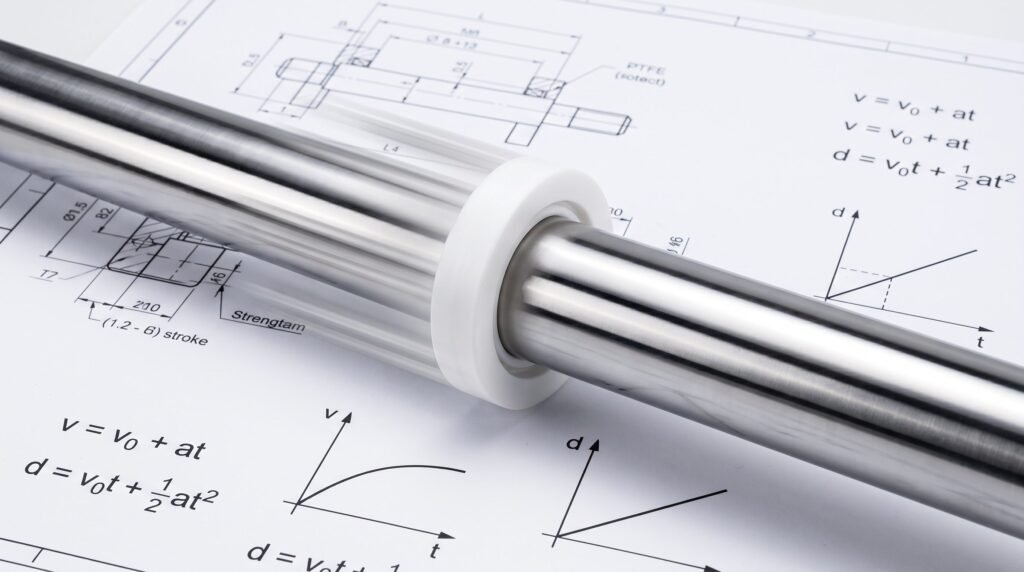

○ Radial Rod Seals: Engineered to seal on the inner diameter (ID). The dynamic sealing lip presses inward against the moving rod or shaft.

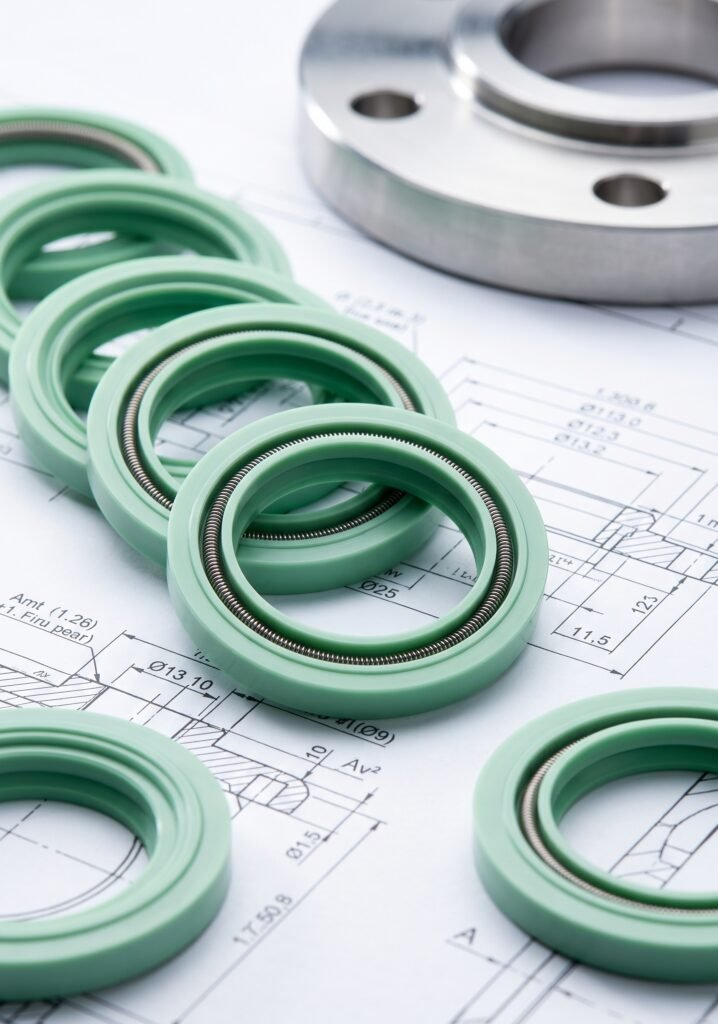

○ Axial Face Seals (Static): Designed for flange connections and flat surfaces. These are subdivided by pressure direction:
○ *Internal Face Seals:* The spring cavity faces the center (ID) to seal internal system pressure.
○ *External Face Seals:* The spring cavity faces the outside (OD) to seal against external pressure or vacuum.

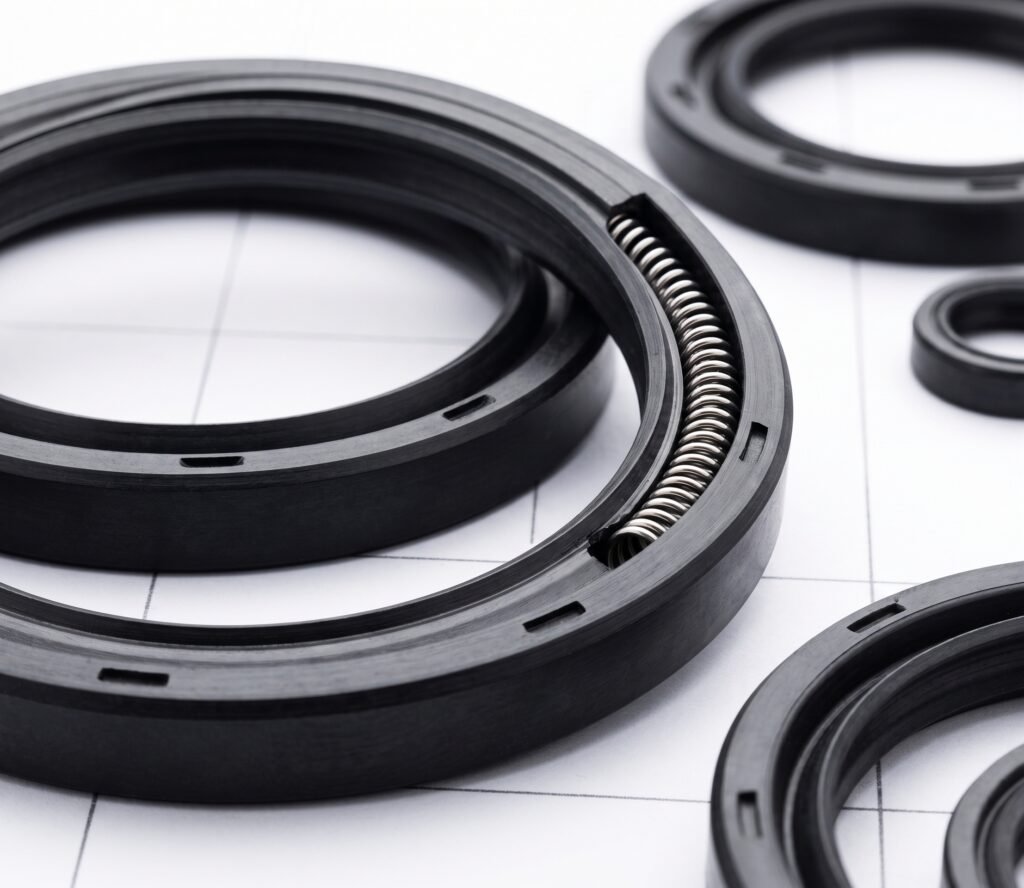

○ High-Speed Rotary Seals: A specialized radial design featuring heavily reinforced PTFE jackets (often flanged) to resist rotational torque and prevent spinning within the hardware housing during high RPM operations.
Material Engineering Specifications

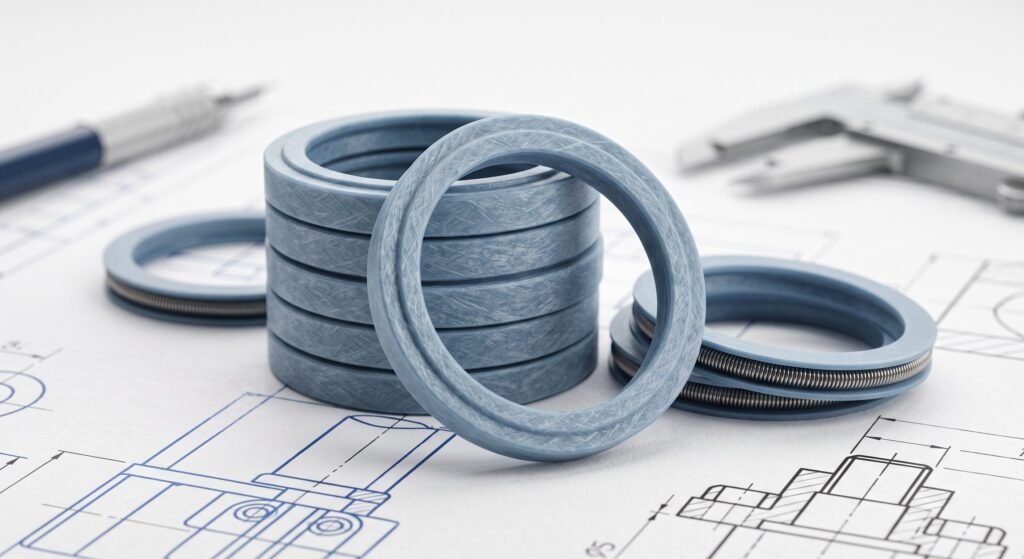

Jacket Compounds:

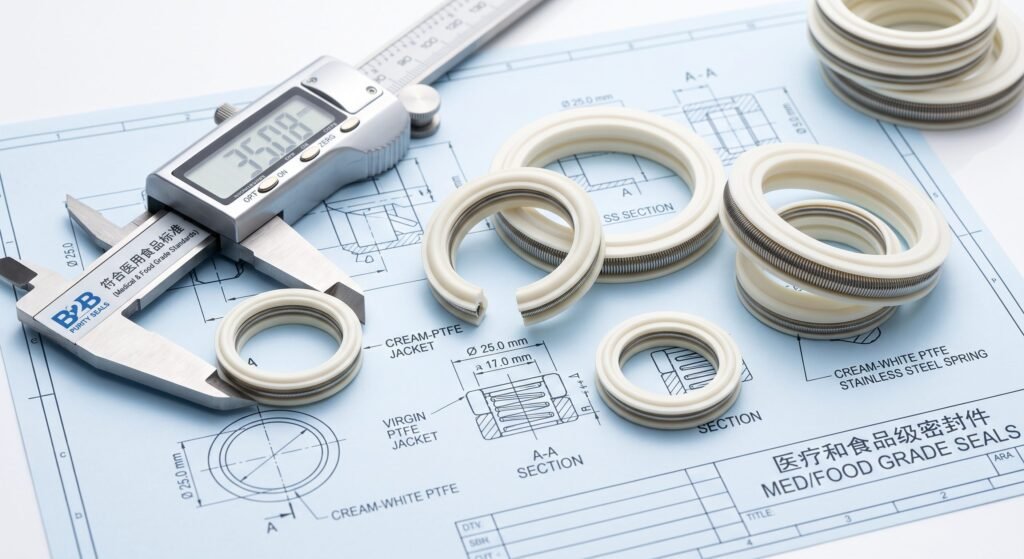

○ Virgin PTFE: FDA-compliant, extremely low friction, used for food-grade, medical, and light-duty applications.
○ Carbon/Graphite-Filled PTFE: Excellent wear resistance, low friction, and high thermal conductivity; ideal for dry-running and water applications.
○ Bronze-Filled PTFE: Maximum extrusion resistance, high compressive strength, and excellent thermal dissipation for high-pressure hydraulic systems.
○ Glass-Filled PTFE: High wear resistance and chemical inertness, commonly used in aggressive chemical processing.
○ UHMWPE (Ultra-High Molecular Weight Polyethylene): Exceptional abrasion resistance for abrasive slurry environments, though limited to lower temperatures (up to 80°C).
Energizer Alloys:
○ 301 / 304 / 316 Stainless Steel: The industry standard for general industrial, hydraulic, and pneumatic environments.
○ Elgiloy® (Co-Cr-Ni Alloy): Mandatory for oil and gas applications involving sour gas (H2S) and extreme fatigue resistance.
○ Hastelloy® (C-276): Specified for the most severe chemical processing environments involving highly corrosive acids and chlorides.
Extreme Operational Capabilities
○ Temperature Range: -268°C (Cryogenic/Liquid Helium) to +315°C (Extreme Heat).
○ Pressure Range: From High Vacuum (10^-9 torr) up to >70 MPa (10,000+ psi) when equipped with anti-extrusion backup rings.
○ Friction & Wear: Eliminates “stick-slip” phenomena (stiction) entirely, allowing for precise motion control even after long periods of inactivity.
I. Spring Energizer Profiles (弹簧赋能器特性)
| Energizer Type | Load Curve | Friction Level | Deflection Tolerance | Media Compatibility | Typical B2B Applications |
|---|---|---|---|---|---|
| V-Spring (Cantilever) | Moderate to High (Linear) | Moderate | Large | Excellent (Scraping action for mud/abrasives) | Reciprocating, Heavy-duty scraping |
| Helical Ribbon | Extremely High (Steep) | High | Very Small | Fair (Best for clean media/gases) | Static face, Cryogenic (Helium), High Vacuum |
| Slanted Coil (Canted) | Low to Moderate (Constant) | Ultra-low | Very Large | Good (General fluids & gases) | High-speed rotary, Battery/Friction-sensitive |
II. Kinematic Application Limits (运动学应用限制)
| Kinematic Application | Motion Type | Sealing Surface | Max Pressure (Ref) | Design Countermeasures |
|---|---|---|---|---|
| Radial Piston | Reciprocating | Outer Diameter (OD) | 35 ~ 70 MPa | Extrusion risk: Add PEEK backup rings for large gaps. |
| Radial Rod | Reciprocating | Inner Diameter (ID) | 35 ~ 70 MPa | Runout: Use slanted coil spring for eccentricity compensation. |
| Face Seal (Internal) | Static | ID (Spring faces internal pressure) | > 70 MPa (Bolt dependent) | Micro-leaks: Employ helical ribbon for extreme tight sealing. |
| High-Speed Rotary | Rotary | Flanged OD | 15 ~ 30 MPa (PV limit) | Heat/Spinning: Flanged jacket prevents spinning; use thermal fillers. |
III. Jacket Material Specifications (护套材料参数)
| Jacket Compound | Temp Range (°C) | Wear Resistance | Extrusion Resistance | Dynamic Friction | Specialty / Compliance |
|---|---|---|---|---|---|
| Virgin PTFE | -200 to +260 | 0.04 | FDA Compliant, Food/Medical grade | ||
| Carbon/Graphite PTFE | -200 to +280 | 0.06 | High thermal conductivity, Dry-running | ||
| Bronze-Filled PTFE | -200 to +280 | 0.08 | Max compressive strength, High-pressure hydraulic | ||
| UHMWPE | -200 to +80 | 0.10 | Exceptional abrasion resistance for slurries |
Heavy Construction & Mining
High-pressure hydraulic seals engineered to withstand extreme shock loads, pressure spikes, and abrasive environments in heavy-duty earthmoving equipment.
Industrial Automation
Precision pneumatic sealing solutions designed for low-friction and high-speed repetitive operations in modern manufacturing assembly lines.
Agricultural Machinery
Robust fluid power profiles built to resist UV, harsh weathering, and constant exposure to abrasive particles in open-field environments.
Fluid & Pressure Control
Custom molded seals and heavy-duty O-rings formulated for reliable dynamic fluid control and leak prevention in critical valve systems.
Need a Custom PTFE Sealing Solution?

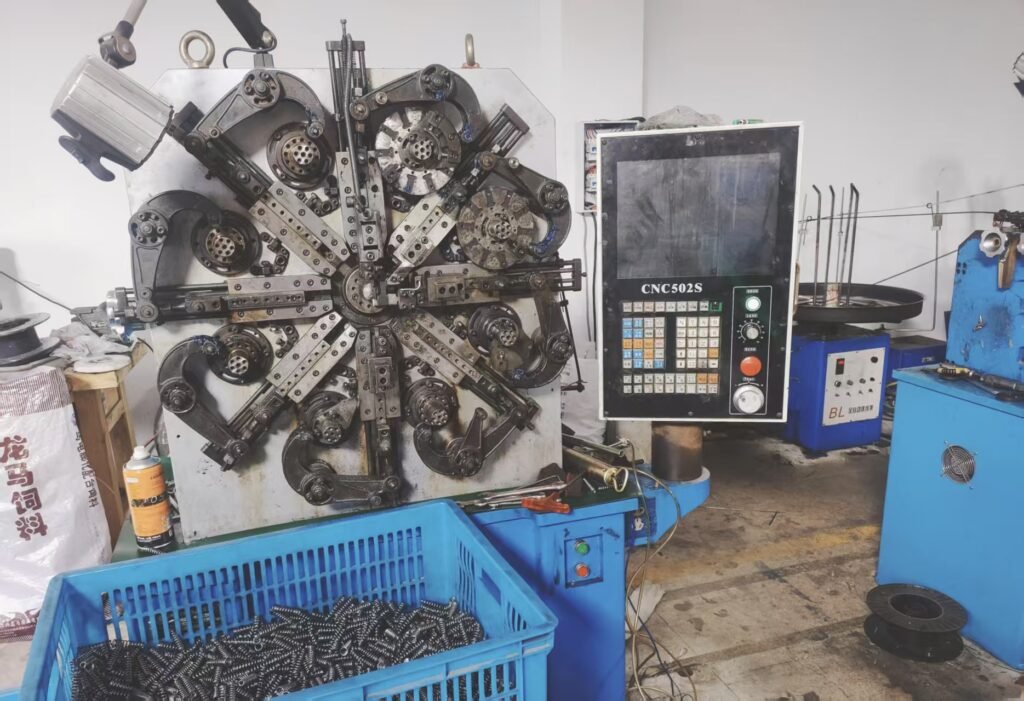

“Whether you require standard spring-energized profiles or non-standard dimensions for extreme temperature and pressure environments, Bingoo delivers tailored sealing solutions. Guided by our dedicated senior designer, we ensure rapid CAD drawing output and precise prototyping. By fully integrating our manufacturing supply chain, we provide seamless, cost-effective support from initial concept to full-scale international delivery.”
📐 Direct Expert Review Skip the bureaucratic red tape. At Bingoo, you work directly with our dedicated senior designer to review your CAD drawings or reverse-engineer physical samples. We ensure rapid, accurate technical communication without the middleman.
🧪 Advanced Material Optimization We don’t just copy dimensions; we engineer for extreme performance. We help you select the exact polymer compounds (such as Virgin PTFE, Carbon-Filled PTFE, or UHMWPE) and energizer alloys to perfectly withstand your specific chemical fluids, severe pressures, and thermal environments.
⚡ Rapid CNC Prototyping Keep your operational downtime to an absolute minimum. Utilizing advanced CNC turning technology, Bingoo manufactures high-precision custom PTFE seal prototypes quickly and cost-effectively, eliminating the need for expensive upfront mold tooling fees
